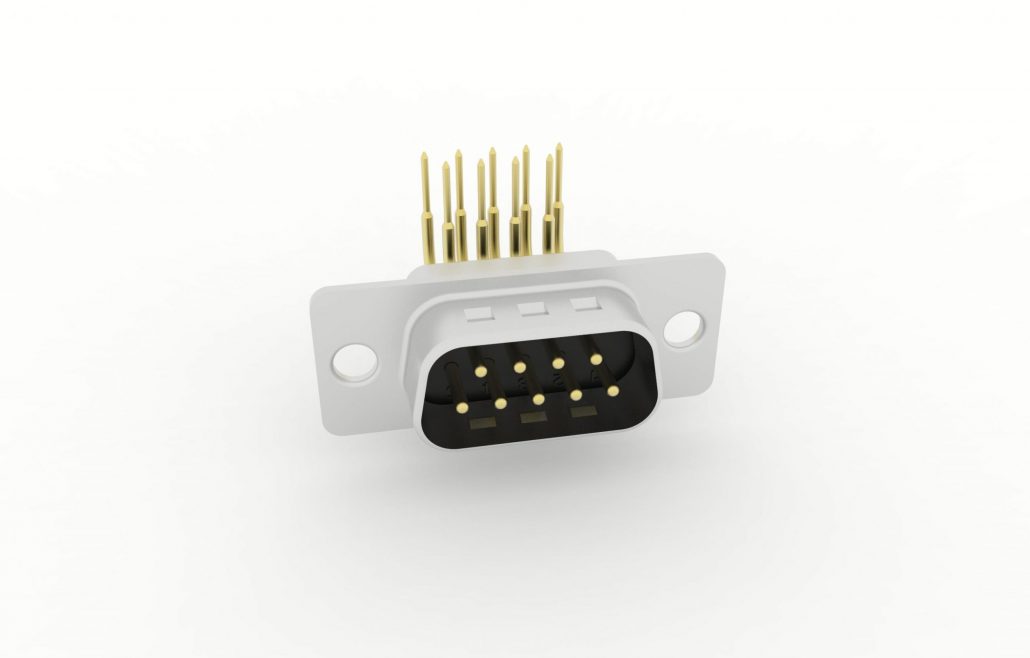

D-Sub Connectors Soldered Connection Angled 8,08mm

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

D-Sub connector solder pins 90°

Machined contacts 8.08 mm/.318 inch footprint



  •     US footprint
  •     High precision machined copper alloy contacts
        – fully gold-plated over Ni
  •     UNC 4-40 or M3 thread
  •     Available with pre-tinned housing

Technical Data

Current carrying capacity 7 A
R contact /R insulation ≤ 10 mΩ / ≥ 10 GΩ
Test voltage 1 KV / AC
Temperature range -55° C to +125° C

Dimensions

1-SDT09568G1-DS_01
