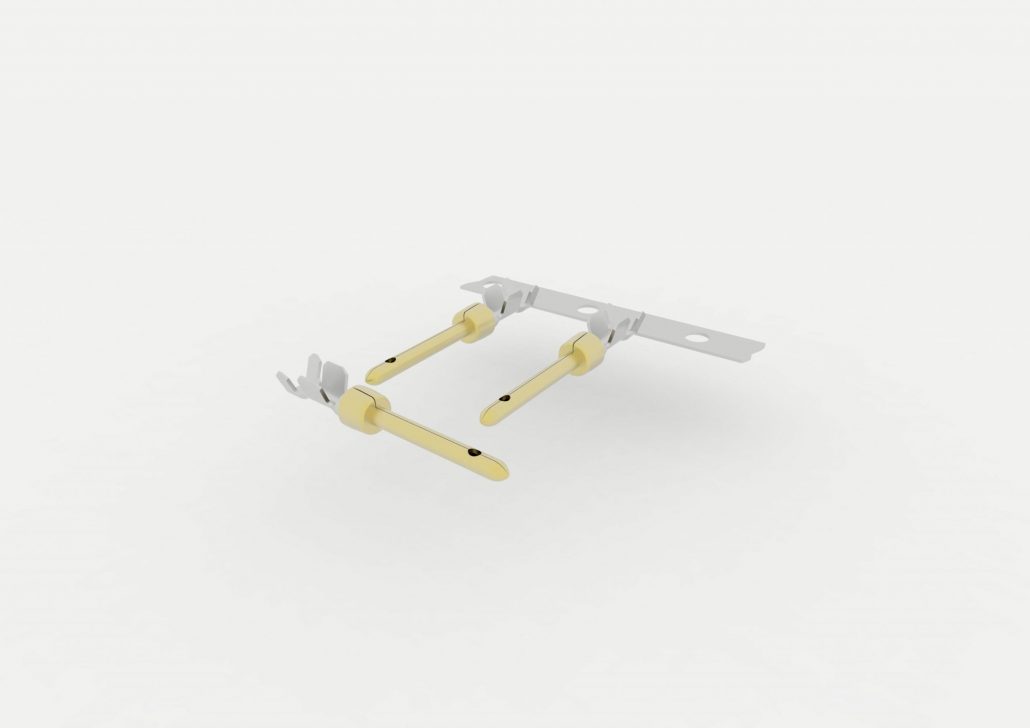

Crimp Contacts stamped

incl. VAT zzgl. Versandkosten

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category: D-Sub cable connection
  • Description
  • Technical Data
  • Dimensions

Description

  • Stamped precision contacts from Cu-alloy
  • Fully golf-plated via Ni-barrier
  • Various surfaces for different lifetimes requirements
  • Highest quality and lifetimes through defined contact zone
  • Conductor cross-sections: AWG 20–AWG 32
  • Approved by leading crimp machine manufacturers

Technical Data

Current carrying capacity

5 A

Wire cross section

AWG 20-32

Mating cycles requirement level 1

500

Mating cycles requirement level 2

200

Mating cycles requirement level 1

50

Material

Cu-alloy gold-plated

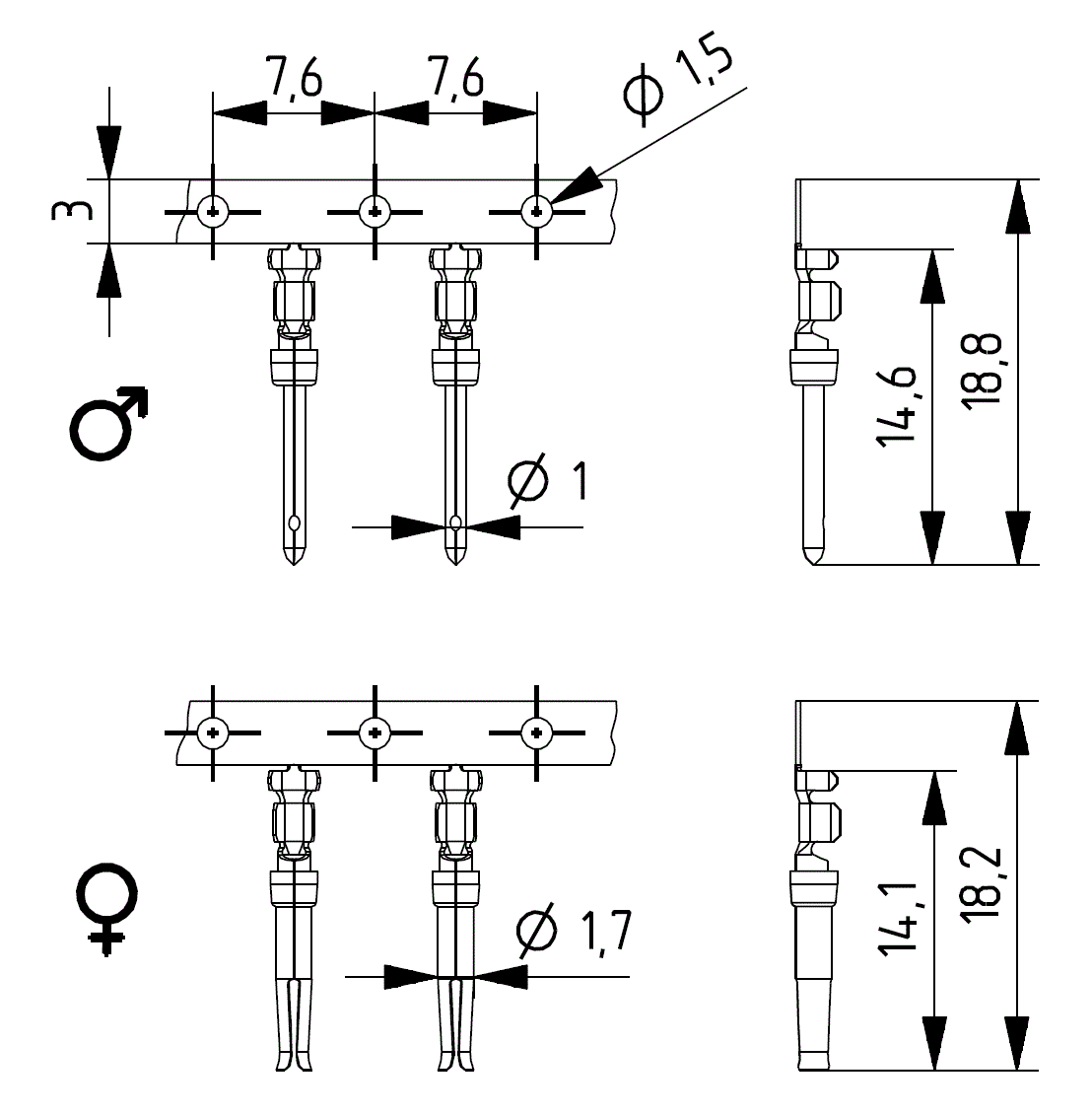

Dimensions

1-C1520GLG2T_DS_01
